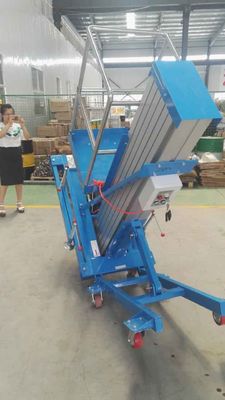

Small Electric hydraulic aluminum lift/ single mast vertical man lift

Place of Origin China
Brand Name Higher ster
Certification ISO,ce
Model Number 10m
Minimum Order Quantity 1set
Price USD2000-10000/set
Packaging Details The normal package is pe film or wooden box for Mobile Scissor lift
Delivery Time 14 working day after deposite
Supply Ability 30set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lift Mechanism Screw Lift Max. Lifting Height 10m
Min. Lifting Height 0.5m Rated Loading Capacity 240kgs
Leave a Message
Product Description

Product Description

General Introduction of Aluminum man lift


The Aluminum Man lift platform (vertical mast lift, aerial work platform) is adopt high-strength quality aluminum alloy material, with beautiful appearance, small size, light weight, flexible operation, easy to implement. Movements smooth, safe and reliable.

1. Load capacity:100kg 125kg 200kg 300kg.
2. Lifting height: 4m-22m
3. Power Supply: AC /DC.
4. Applications: aerial installation, maintenance, clean at the construction sites, workshops, warehouse, station, hotel, airport, wharf, gas station and stadium etc.
5. Custom-made according to the requirement

6. Advantage: small footprint, less weight, easily moved, able to access to limited passageway The most ideal equipment for

aerial work to replace ladder or rigger, with high efficiency and more security


Safety protection


1,Leveling of platform is guaranteed by adjusting outrigger with screws
2,Electric limit switch shall cut off power when up limit is reached.
3,Ground / platform control modes are available, rendering possibility of one operator.
4,Stroke protection block is build in hydraulic cylinder for security.
5,Emergency lowering system is equipped
6,Antiskid staircase is provided
7,Leveling indictor is equipped.

Model

Specification for Single Mast aluminum man lift.

Model
Capacity
(kg)
Table size (m)
Max.lifting height(m)
Max.Working height(m)
Total dimension
(m)
Machine weight
(kg)
GTWY4-100S
150
0.60×0.55
4
5.7
1.05*0.75*1.65
185(AC)
230(DC)
GTWY6-100S
150
0.60×0.55
6
7.7
1.32*0.8*1.65
260(AC)
305(DC)
GTWY8-100S
125
0.60×0.55
8
9.7
1.32*0.8*1.98
300(AC)
345(DC)
GTWY9-100S
125
0.60×0.55
9
10.7
1.38*0.85*1.98
326(AC)
372(DC)
GTWY10-100S
125
0.60×0.55
10
11.7
1.42*0.85*2.1
350(AC)
395(DC)
Remarks:The Aluminum Lift also includes another four kinds: Double Masts /Triple Masts/ Quadruple Masts / Multi-Masts and The lifting height ranges are from 4m up to 22m, and lifting capacity varies are from 100kg up to 300kg.For more details,Pls refer to the following product.
Detailed Images
Small Electric hydraulic aluminum lift/ single mast vertical man lift 0

Standard Configuration

Power supply: single phase AC(AC220V);
Move mode: manual;
Driving unit: one unit hydraulic pump, small volume and less noise.

Optional Configuration:

Power supply:Battery DC with charger, suitable for outdoor operation.
Move mode:
Electric moving device is equipped in case of long distance travel;Could be built in carriage of truck;Trailer base could be provided in case of outdoor operation

Four Kinds of Aluminum man lift


Small Electric hydraulic aluminum lift/ single mast vertical man lift 1
Small Electric hydraulic aluminum lift/ single mast vertical man lift 2

Double Mast aluminum man lift.

Max height of platform: 6m,8m,9m,10m,12m for option.Application: 1-2 passengers

Triple Masts aluminum man lift.

Max height of platform:10m,12m,14m,15m for option,able to carry two passengers, with more stability,

more working height.
Small Electric hydraulic aluminum lift/ single mast vertical man lift 3
Small Electric hydraulic aluminum lift/ single mast vertical man lift 4

Quadruple Masts aluminum man lift.

Max height of platform:10m,12m,14m,15m 16m for option.Application: 1-2 passengers

Multi-masts aluminum man lift.

Max height of platform:16m,18m,20m,22m for option.double decks, more working height.

Packing Details.

The normal package is pe film or wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Small Electric hydraulic aluminum lift/ single mast vertical man lift 5
Factory Images
Small Electric hydraulic aluminum lift/ single mast vertical man lift 6
Small Electric hydraulic aluminum lift/ single mast vertical man lift 7


Our Service


1. Service concept: Exceed clients’ expectation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program. View our Factory.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: 24hours technical support by email, telephone or video online and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
