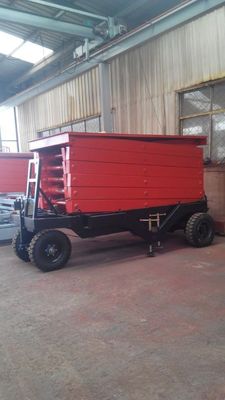

Hydraulic diesel scissor lift manufacturer good price
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lift Mechanism | Scissor Lift | Max. Lifting Height | 3m |
|---|---|---|---|
| Min. Lifting Height | 0.5m | Rated Loading Capacity | 240kgs |
Product Description
Product Description
General Introduction of electric lift platform scissor lifter
1. Load capacity:120kg 230kg 300kg 500kg 1000kg etc.
2. Lifting height: 4m-26m
3. Drive power: AC /DC/Diesel/Gasoline.
4. Applications: aerial installation, maintenance, clean at the construction sites, workshops, warehouse, station, hotel, airport, wharf, gas station and stadium etc.
5. Custom-made according to the requirement
6. Advantage: Electric lift makes low noise and no emission when working. 90-degree steering can run in both high and low speeds, enable electric lift work in small space.
Safety protection
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency.
Model
|
Model
|
Capacity
(kg)
|
Table size (mm)
|
Max. height
(mm)
|
Power
(kw)
|
Total dimension
(mm)
|
Machine weight
(kg)
|
|
LXSJY0.3-4
|
300
|
1650*750
|
4000
|
2.2
|
2100*950*2050
|
400
|
|
LXSJY0.3-6
|
300
|
1650*750
|
6000
|
2.2
|
2100*950*2120
|
650
|
|
LXSJY0.3-8
|
300
|
1800*900
|
8000
|
2.2
|
2200*1260*2450
|
1200
|
|
LXSJY0.3-10
|
300
|
2110*1220
|
1000
|
2.2
|
2600*1550*2400
|
1500
|
|
LXSJY0.3-12
|
300
|
2550*1500
|
12000
|
2.2
|
3150*2000*2850
|
2850
|
|
LXSJY0.3-14
|
300
|
3000*1600
|
14000
|
2.2
|
3550*2120*2850
|
3000
|
|
LXSJY0.3-16
|
300
|
3200*1600
|
16000
|
3.0
|
3890*2120*3030
|
3900
|
|
LXSJY0.3-18
|
300
|
3200*1600
|
18000
|
3.0
|
4300*2120*3250
|
4300
|
|
LXSJY0.5-10
|
500
|
2110*1220
|
10000
|
2.2
|
2700*1550*2450
|
1600
|
|
LXSJY0.5-12
|
500
|
2550*1500
|
12000
|
2.2
|
3160*2000*2850
|
2600
|
|
LXSJY0.5-14
|
500
|
3000*1600
|
14000
|
2.2
|
3550*2120*2850
|
3100
|
|
LXSJY0.5-18
|
500
|
3210*1600
|
18000
|
3.0
|
3890*2120*3030
|
4300
|
|
LXSJY1.0-8
|
1000
|
2000*1220
|
8000
|
3.0
|
2600*1550*2640
|
1800
|
|
LXSJY1.0-10
|
1000
|
2220*1200
|
10000
|
3.0
|
2820*1720*2850
|
2380
|
|
LXSJY1.0-12
|
1000
|
2600*1500
|
12000
|
3.0
|
3200*2015*3090
|
3580
|
|
LXSJY1.0-14
|
1000
|
3000*1600
|
14000
|
3.0
|
3550*2120*2850
|
3800
|
|
Remarks:we accept customized design,pls advise Max.Load capacity ,Max.Lifting Height and where do you use.
All diemensions is subject to the real machine.
|
||||||
Detailed Images
Standard Configuration
AC 380V
Emergency lowering valve
Leveling device with supporting screw
Waterproof electric box
Emergency stop button
Optional Configuration:
AC 220V (for 6m – 11m platform),DC,
AC/DC, Disesel,Gasoline
Explosion proof electric control system
Rubber solid tire
Extension platform
Self-propelled electric device
Packing & Delivery
Packing Details.
The normal package is pe film or wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Factory Images
Our Service
1. Service concept: Exceed clients’ expectation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program. View our Factory.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: 24hours technical support by email, telephone or video online and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.
